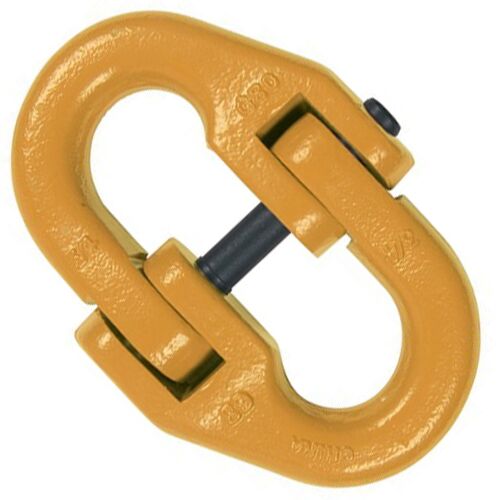

16mm Grade 80 Component Connector 8.00T WLL - Suits 16mm Chain

Suitable Chain Diameter	16mm
A	39mm
B	103mm
C	40mm
D	21mm
E	21mm
F	33mm
P	14mm
L	106mm
Working Load Limit	8 tonnes
Product Weight	1.10kgs

Grade 80 component connector used with grade 80 chain and fittings when connecting Grade 80 components together

Made from alloy steel, these component connectors are quenched and tempered, then finished with yellow pain, they conform to BS EN1677-1 specification and are suitable for lifting applications. Safety Factor 4:1.
