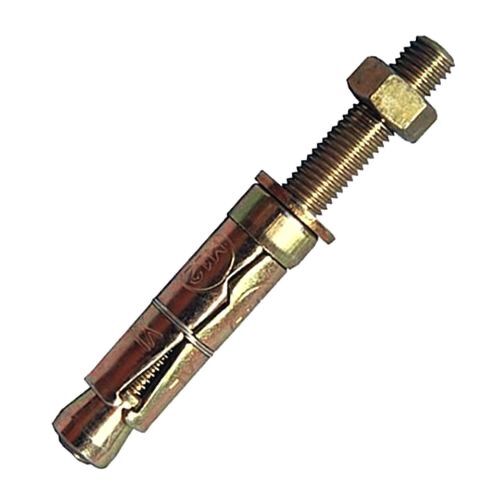

BZP Steel Projecting Bolts with Sleeve Fixing Anchor

Stainless Direct offer a wide range of BZP projecting anchor bolts with fixing sleeve anchors.

These are a zinc plated, yellow passivated, torque controlled projecting bolts with fixing sleeve anchors.

They are suitable for use in non-cracked concrete, dense concrete blocks, solid bricks and some natural stone.

Each bolt is made with high tensile 8.8 grade steel and comes with loose nut and washer.

See charts below for performance data and available sizes.

In stock

Grouped product items
Product	Drill Hole Diameter (mm)	Thread Diam (mm)	Overall Length (mm)	Max Fixture Clearance (mm)	Drill Hole Depth (mm)	Installation Torque (Nm)	PRICE
M6 x 10mm Projecting Bolt	12	6	60	10	50	6	£0.28 £0.23
M6 x 25mm Projecting Bolt	12	6	75	25	50	6	£0.31 £0.26
M6 x 50mm Projecting Bolt	12	6	100	50	50	6	£0.35 £0.29
M8 x 15mm Projecting Bolt	14	8	75	15	55	14	£0.42 £0.35
M8 x 40mm Projecting Bolt	14	8	100	40	55	14	£0.46 £0.38
M8 x 80mm Projecting Bolt	14	8	140	80	55	14	£0.60 £0.50
M10 x 10mm Projecting Bolt	16	10	80	10	65	27	£0.58 £0.48
M10 x 30mm Projecting Bolt	16	10	100	30	65	27	£0.65 £0.54
M10 x 50mm Projecting Bolt	16	10	120	50	65	27	£0.70 £0.58
M10 x 70mm Projecting Bolt	16	10	140	70	65	27	£1.03 £0.86
M12 x 15mm Projecting Bolt	20	12	100	15	85	46	£0.94 £0.78
M12 x 25mm Projecting Bolt	20	12	110	25	85	46	£1.07 £0.89
M12 x 50mm Projecting Bolt	20	12	135	50	85	46	£1.13 £0.94
M12 x 70mm Projecting Bolt	20	12	155	70	85	46	£1.18 £0.98
M16 x 35mm Projecting Bolt	25	16	160	35	125	110	£1.99 £1.66
