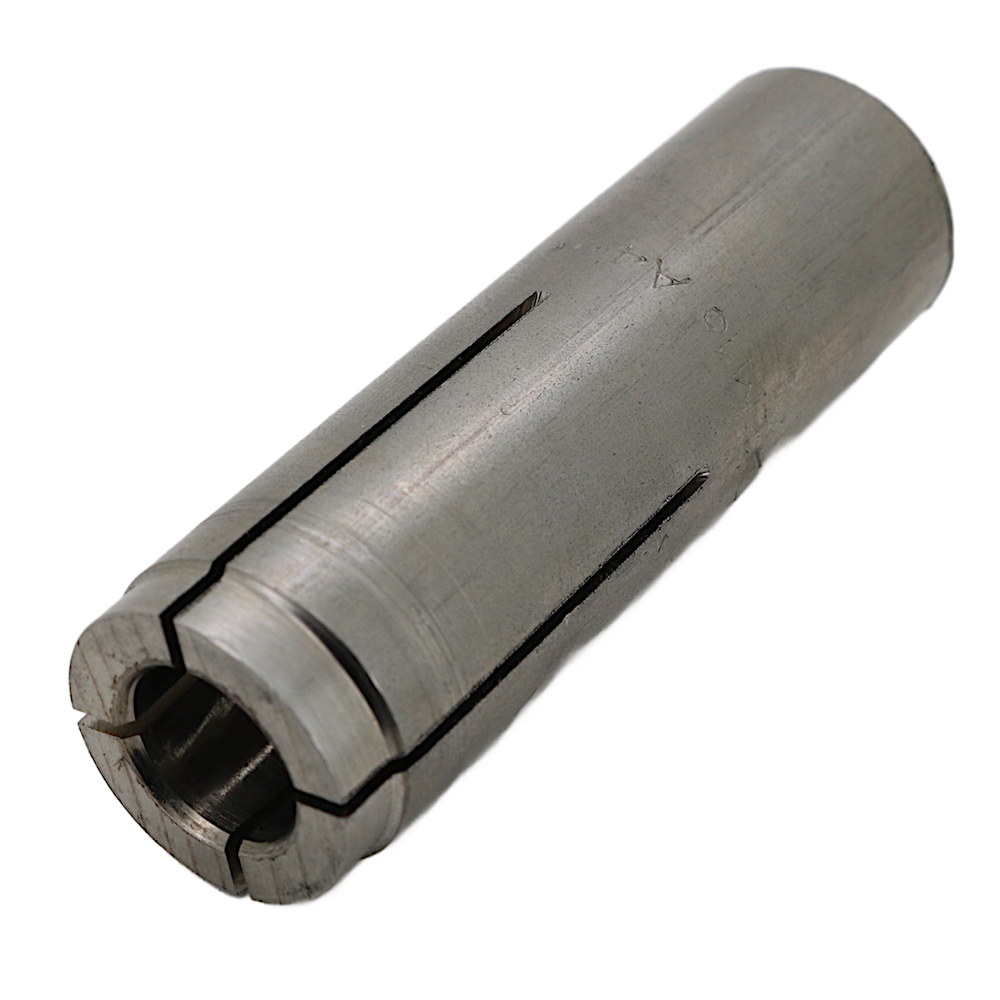

M6 Drop In Anchor Stainless Steel (6mm)
In stock
SKU: DSSM06
| Thread Diameter | M6 |
| Overall Anchor Length | 30mm |
| Drill Hole Diameter | 8mm |
| Setting Puch SKU Code | DZSP06 |
| Fixture Clearance Hole | 7mm |
| Internal Thread Length | 13mm |
| Embedment Depth | 30mm |
| Minimum Hole Depth | 30mm |
| Minimum Structure Thickness | 100mm |
| Maximum Installation Torque | 4Nm |
- A4/AISI 316 stainless steel
- For use in non-cracked concrete C20/25 and C50/60
- Deformation controlled
- Tested to ETAG 001 Part 4
- Suitable setting punch required for installation
£1.30
£1.08
