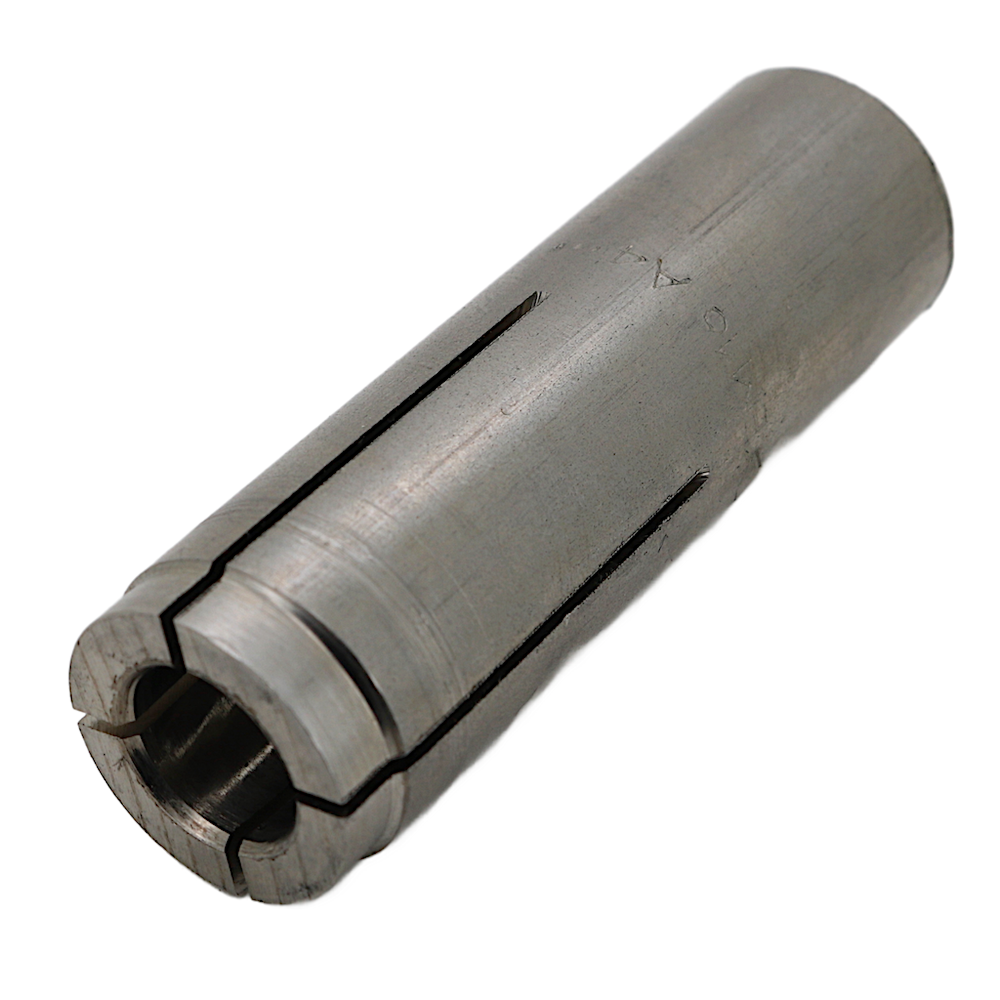

M8 Drop In Anchor Stainless Steel (8mm)
In stock
SKU: DSSM08
| Thread Diameter | M8 |
| Overall Anchor Length | 30mm |
| Drill Hole Diameter | 10mm |
| Setting Puch SKU Code | DZSP08 |
| Fixture Clearance Hole | 9mm |
| Internal Thread Length | 13mm |
| Embedment Depth | 30mm |
| Minimum Hole Depth | 30mm |
| Minimum Structure Thickness | 100mm |
| Maximum Installation Torque | 8Nm |
- A4/AISI 316 stainless steel
- For use in non-cracked concrete C20/25 and C50/60
- Deformation controlled
- Tested to ETAG 001 Part 4
- Suitable setting punch required for installation
