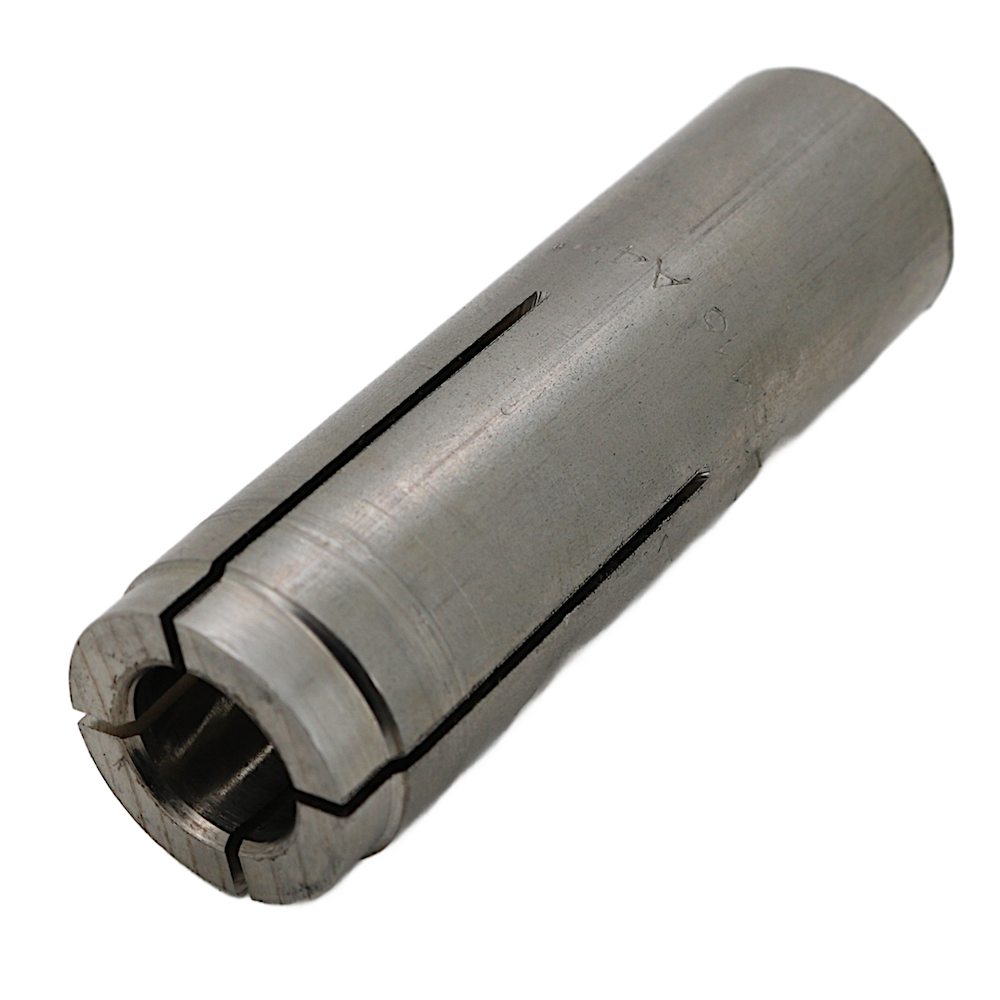

M12 Drop In Anchor Stainless Steel (12mm)
In stock
SKU: DSSM12
| Thread Diameter | M12 |
| Overall Anchor Length | 50mm |
| Drill Hole Diameter | 15mm |
| Setting Puch SKU Code | DZSP12 |
| Fixture Clearance Hole | 14mm |
| Internal Thread Length | 18mm |
| Embedment Depth | 50mm |
| Minimum Hole Depth | 50mm |
| Minimum Structure Thickness | 140mm |
| Maximum Installation Torque | 35Nm |
- A4/AISI 316 stainless steel
- For use in non-cracked concrete C20/25 and C50/60
- Deformation controlled
- Tested to ETAG 001 Part 4
- Suitable setting punch required for installation
£5.23
£4.36
