Spin In Quartz Anchor Capsules ETA Option 7

Stainless Direct offer spin in quartz anchor capsules-ETA option 7.

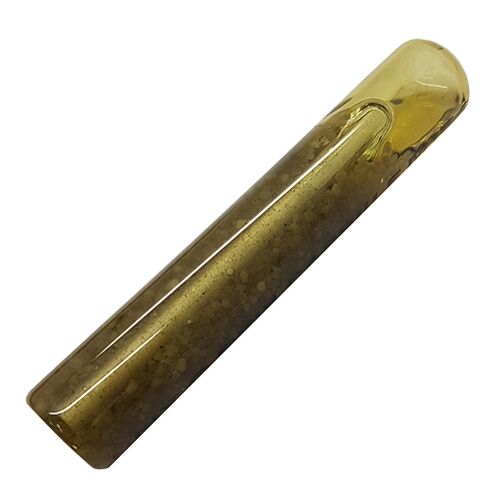

The spin in glass capsule anchor is used with the threaded studs to provide a stress free anchorage in concrete.

The quartz aggregate contained in the capsule enable the anchor to achieve exceptional loads.

The quartz spin in capsules are suitable for use in solid concrete and some brickwork and natural stone where an expansion free, high strength fixing is required.

M8-M30 sizes available. Order yours online today.

In stock
Grouped product items
Product Suit Thread Dia (mm) Capsule Dia (mm) Drill Hole Dia (mm) Capsule Length (mm) Drill Min Hole Depth (mm) PRICE Qty
8mm (M8) Spin in Quartz Capsule 8 9 10 80 80
£1.44 £1.20
10mm (M10) Spin in Quartz Capsule 10 11 12 80 90
£1.74 £1.45
12mm (M12) Spin in Quartz Capsule 12 13 14 95 110
£2.11 £1.76
16mm (M16) Spin in Quartz Capsule 16 17 18 95 125
£2.39 £1.99
20mm (M20) Spin in Quartz Capsule 20 17 22 160 170
£3.30 £2.75
24mm (M24) Spin in Quartz Capsule 24 22 26 175 210
£3.77 £3.14
30mm (M30) Spin in Quartz Capsule 30 25 32 230 280
£6.22 £5.18
Show Price without VAT
