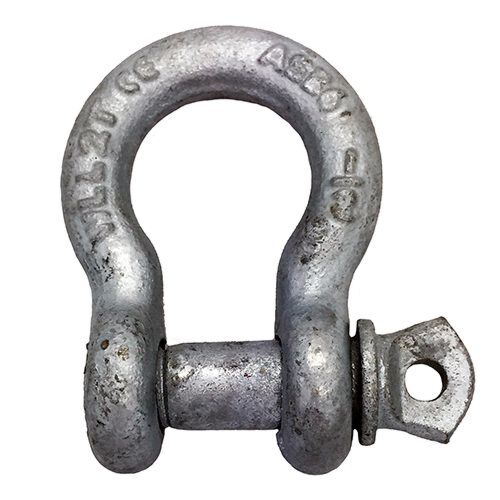

Galvanised Steel US Federal RR-C-271 Lifting Bow Shackles

Drop forged bow shackles meet US Federal RR-C-271 Specification and feature a screw pin

The working load limit is forged onto the shackle body for guidance on safe use

In stock

Grouped product items
Product	d (inches)	D (inches)	S (inches)	W (inches)	R (inches)	WLL (tonnes)	PRICE
6mm 0.50ton Bow Shackle	1/4"	5/16"	1-1/8"	15/32"	3/4"	0.50	£1.03 £0.86
8mm 0.75ton Bow Shackle	5/16"	3/8"	1-1/4"	17/32"	13/16"	0.75	£1.37 £1.14
10mm 1.00ton Bow Shackle	3/8"	7/16"	1-7/16"	21/32"	15/16"	1.00	£1.75 £1.46
11mm 1.50ton Bow Shackle	7/16"	1/2"	1-11/16"	23/32"	1-1/16"	1.50	£2.21 £1.84
12mm 2.00ton Bow Shackle	1/2"	5/8"	1-7/8"	13/16"	1-3/16"	2.00	£2.83 £2.36
16mm 3.25ton Bow Shackle	5/8"	3/4"	2-13/32"	1-1/16"	1-1/2"	3.25	£4.44 £3.70
18mm 4.75ton Bow Shackle	3/4"	7/8"	2-27/32"	1-1/4"	1-3/4"	4.75	£8.52 £7.10
22mm 6.50ton Bow Shackle	7/8"	1"	3-5/16"	1-7/16"	2"	6.50	£10.54 £8.78
25mm 8.50ton Bow Shackle	1"	1-1/8"	3-3/4"	1-11/16"	2-5/16"	8.50	£15.29 £12.74
28mm 9.50ton Bow Shackle	1-1/8"	1-1/4"	4-1/4"	1-13/16"	2-5/8"	9.50	£21.67 £18.06
30mm 12ton Bow Shackle	1-1/4"	1-3/8"	4-11/16"	2-1/32"	2-7/8"	12.00	£29.04 £24.20
