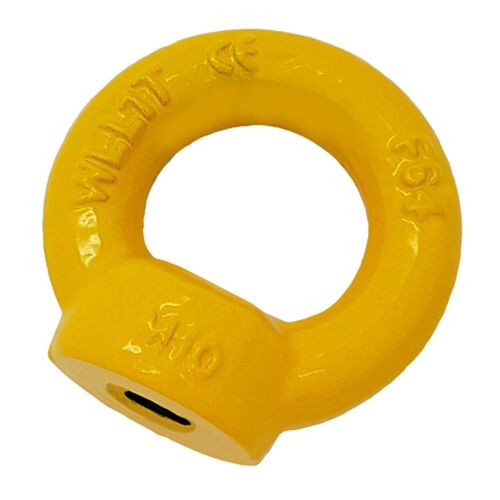

Grade 80 Eye Nuts DIN 582

Grade 80 DIN 582 Lifting Eye Nuts Technical Specifications:

• Suitable for lifting applications
• Sizes based generally on DIN 582 eye nuts
• W.L.L based on vertical lifts only
• Super alloy Grade 8 steel
• Temperature range -40°C up to +200°C
• Marked with W.L.L, material grade, CE and ID mark
• Fatigue rated x 1.5 Working Load Limit (W.L.L) for 20,000 cycles
• Proof tested - 2.5 times Working Load Limit
• 100% magnaflux crack detection
• Safety Factor 4:1 (breaking load is 4x the W.L.L)
• UK stock
• Comes supplied with relevant certificates

The below table shows working angles for our DIN 582 Grade 80 Eye Nuts
