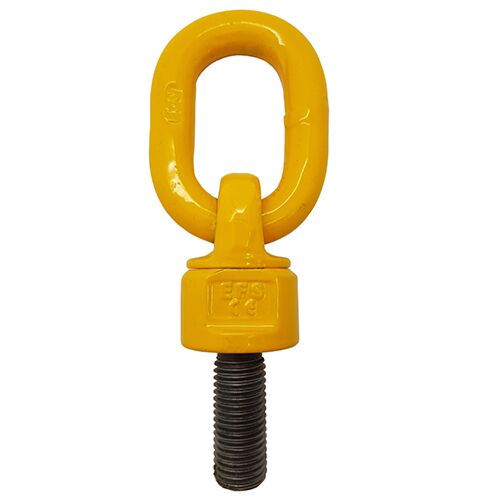

Grade 80 Swivel Lifting Point Eye Bolts

Grade 80 swivel lifting eye bolts

Includes a welding oval link and is able to turn multi-directional for various lifting applications

Available in sizes from M10-M30











In stock
Grouped product items
Product A (mm) d (mm) L (mm) H (mm) D (mm) W (mm) W.L.L PRICE Qty
M10 x 18mm Swivel Eye Bolt 51 14 18 55 10 30 0.45t
£18.00 £15.00
M10 x 90mm Swivel Eye Bolt 51 14 90 55 10 30 0.50t
£22.56 £18.80
M12 x 18mm Swivel Eye Bolt 51 14 18 55 12 30 0.50t
£20.26 £16.88
M12 x 110mm Swivel Eye Bolt 51 14 110 55 12 30 0.50t
£24.53 £20.44
M16 x 40mm Swivel Eye Bolt 52 14 40 55 16 30 1.12t
£21.24 £17.70
M16 x 120mm Swivel Eye Bolt 52 14 120 55 16 30 1.12t
£27.31 £22.76
M20 x 30mm Swivel Eye Bolt 68 16 30 70 20 35 2.00t
£34.54 £28.78
M20 x 120mm Swivel Eye Bolt 68 16 120 70 20 35 2.00t
£41.06 £34.22
M24 x 40mm Swivel Eye Bolt 78 18 40 85 24 40 3.15t
£54.12 £45.10
M24 x 120mm Swivel Eye Bolt 78 18 120 85 24 40 3.15t
£61.13 £50.94
M30 x 35mm Swivel Eye Bolt 96.5 20 35 85 30 40 5.30
£79.20 £66.00
M30 x 120mm Swivel Eye Bolt 96.5 20 120 85 30 40 5.30
£86.40 £72.00
Show Price without VAT
Download Product Data Sheet Download Product Data Sheet






What is the thread pitch for your Grade 80 eye bolts?

All of our Eye Bolts are suppllied with a Metric Coarse standard thread as per ISO 262 or BS 3643 specifications, please refer to the table below for thread pitches
