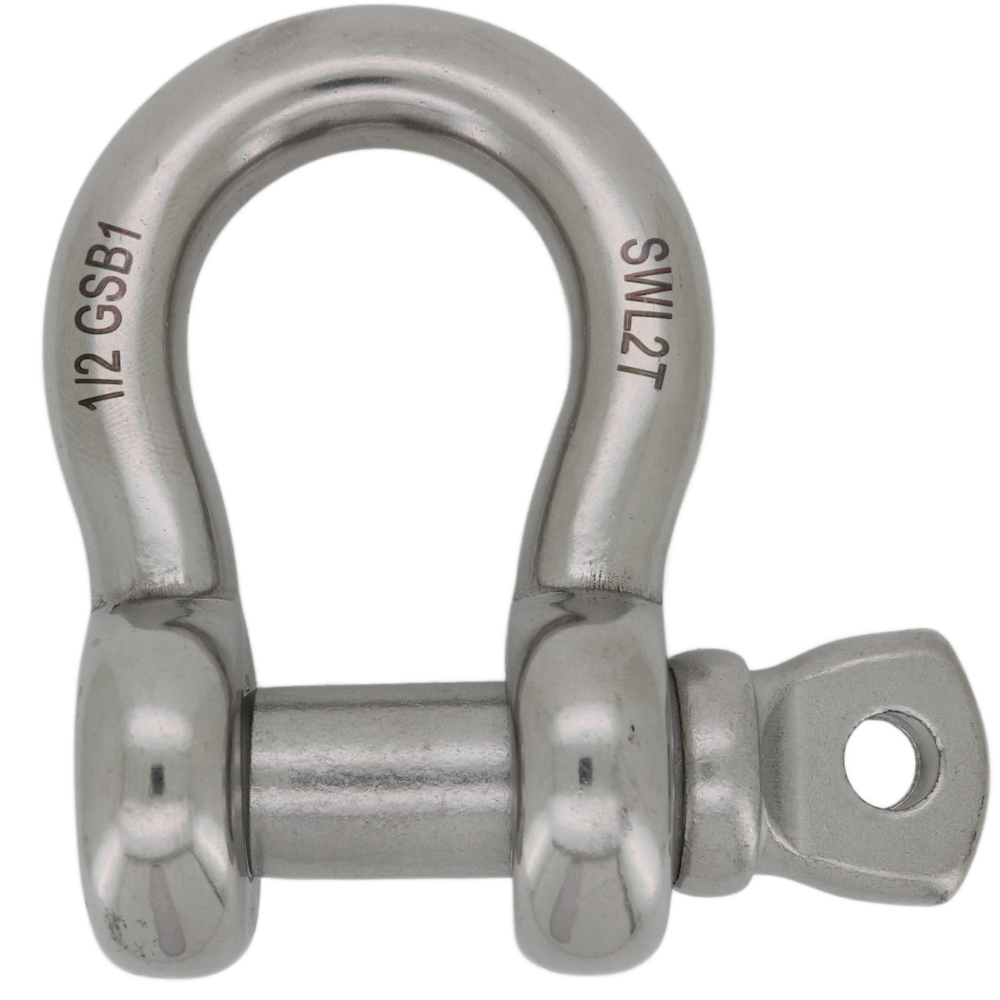

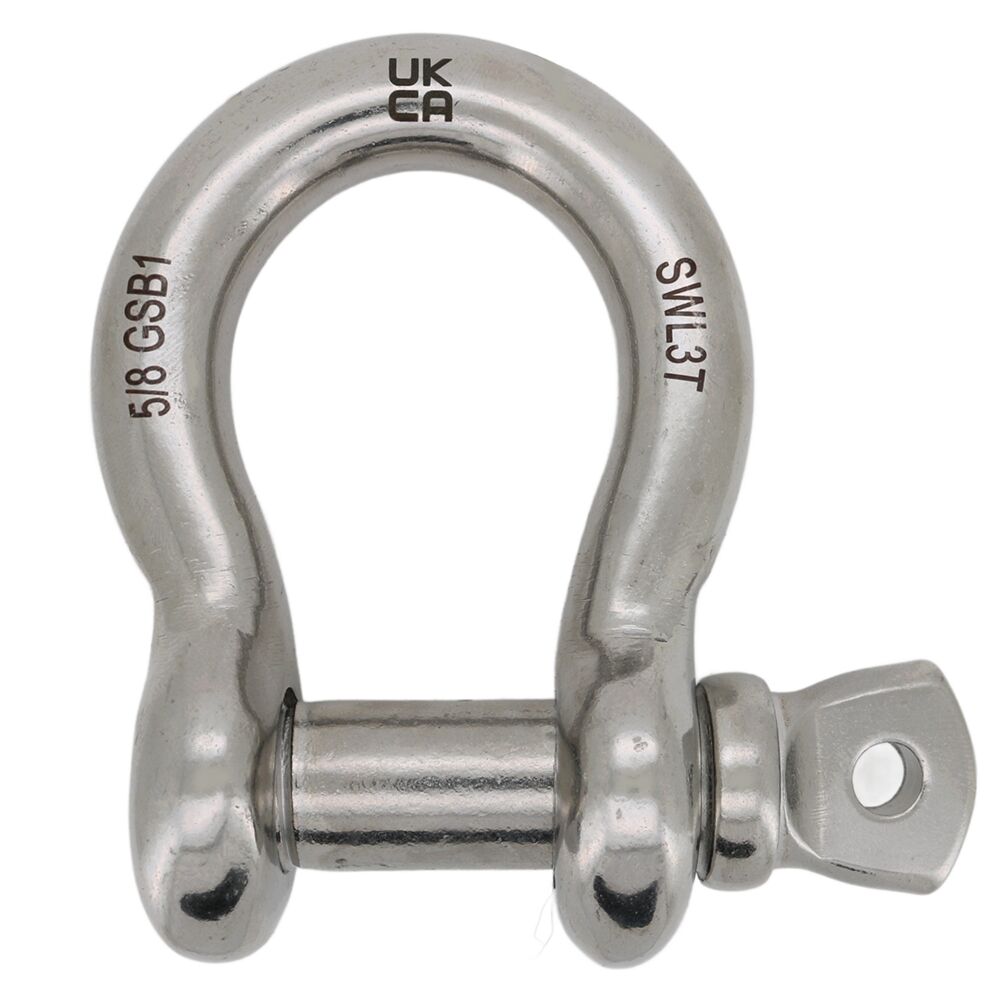

Stainless Steel Safe Working Load Rated Bow Shackles - Screw pin

GS Products offer A4 - AISI 316 marine grade stainless steel lifting bow shackles with screw pin.

These bow shackles can be used for a variety of lifting purposes and feature a totally removable shackle pin.

Each shackle has a safe working load (SWL) marked on the body, there is also a batch code for traceability and a UKCA marking for full conformity. The factor of safety is 4:1 (The minimum breaking load is 4x the SWL).

Comes supplied with a statement of conformity certificate.

0.33 ton, 0.5 ton, 0.75 ton, 1 ton, 2 ton, 3 ton, 4 ton, 5 ton and 6 ton SWLs available from UK stock. Order yours online today.

In stock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Grouped product items
Product	d (mm)	D (mm)	R (mm)	W (mm)	S (mm)	SWL Tonnes	PRICE
0.33 Ton Bow Shackle	5	6	16	9	23	0.33	£1.67 £1.39
0.50 Ton Bow Shackle	6	8	20	12	27	0.50	£3.35 £2.79
0.75 Ton Bow Shackle	7.5	10	21	14	31.5	0.75	£3.56 £2.97
1.00 Ton Bow Shackle	9.5	12	26	17	38.5	1.00	£3.70 £3.08
2.00 Ton Bow Shackle	12	16	34	22	50	2.00	£7.07 £5.89
3.00 Ton Bow Shackle	15.5	19.5	43	28	60	3.00	£11.99 £9.99
4.00 Ton Bow Shackle	18	21.5	54	32	75	4.00	£22.79 £18.99
5.00 Ton Bow Shackle	21	25	58	38	86	5.00	£29.99 £24.99
6.00 Ton Bow Shackle	24	28	67	45	95	6.00	£44.99 £37.49
