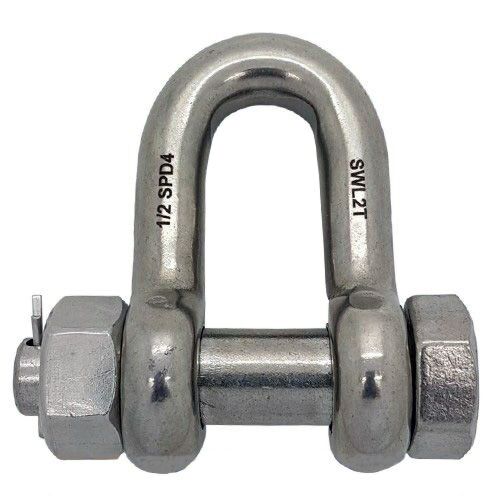

Stainless Steel Safe Working Load Rated Dee Shackles - Safety Pin

Load rated marine grade A4 - AISI 316 stainless steel lifting d shackles

D Shaped Shackle Body with Type 'E' Safety Pin with Nut Excellent for lifting purposes

4:1 Factor of Safety

Safe Working Load is marked on the shackle body



In stock
Grouped product items
Product A (mm) B (mm) H (mm) D (mm) E (mm) C (mm) F (mm) G (mm) SWL (Kgs) PRICE Qty
0.75 Ton Shackle 7.5 10 50 7.5 15 20 27 49 750
£4.91
1 Ton Shackle 9.5 12 63 9.5 17 24 32 60 1000
£6.29
2 Ton Shackle 12 16 74 12 20 31 41 77 2000
£13.44
3 Ton Shackle 15 20 100 15 27 39 54 111 3000
£21.59
4 Ton Shackle 18 21 111 18 34 43 60 111 4000
£28.79
5 Ton Shackle 21 24 123 21 37 48 69 125 5000
£41.99
6 Ton Shackle 24 27 141 24 46 55 75 138 6000
£59.99
Show Price without VAT
