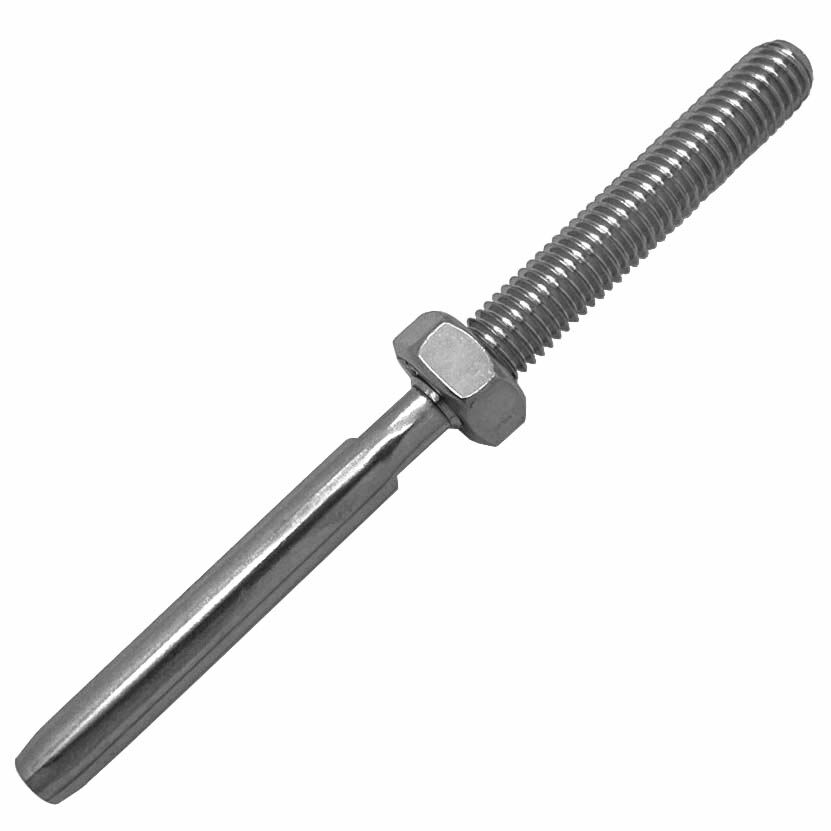

Stainless Steel Wire Rope Swage Stud Terminals - Right Handed

We supply stainless steel right handed swage studs.

They are made with A4-AISI 316 stainless steel.

Each has a right handed thread.

Sizes range from 2mm-12mm diameter.

Left handed studs are also available.

These need to be hydraulically crimped or swaged onto wire rope.

1 hex nut included.

In stock
Grouped product items
Product A (mm) L (mm) D (mm) G (mm) L2 (mm) L1 (mm) Suit Wire Diameter (mm) PRICE Qty
2mm Stainless Steel Swage Stud (M5 Stud) 2.3 73 4.5 5 30 38 2
£1.34 £1.12
2.5mm Stainless Steel Swage Stud (M5 Stud) 2.5 73 4.5 5 30 38 2.5
£1.34 £1.12
3mm Stainless Steel Swage Stud (M6 Stud) 3.3 80 6.35 6 32 40 3
£1.51 £1.26
4mm Stainless Steel Swage Stud (M8 Stud) 4.2 102 7.5 8 40 52 4
£2.14 £1.78
5mm Stainless Steel Swage Stud (M10 Stud) 5.2 130 9 10 57 63 5
£2.86 £2.38
6mm Stainless Steel Swage Stud (M12 Stud) 6.75 142 12.5 12 63 68 6
£5.99 £4.99
8mm Stainless Steel Swage Stud Terminal (M16 Stud) 8.35 175 13 16 76 89 8
£9.59 £7.99
10mm Stainless Steel Swage Stud (M16 Stud) 11 210 13 16 80 100 10
£16.79 £13.99
12mm Stainless Steel Swage Stud (M20 Stud) 13 245 16 20 85 120 12
£17.99 £14.99
Show Price without VAT

The swage stud fittings are very popular, commonly used when making a steel wire balustarde system with steel posts

Pictured below is a 4mm swage stud fitting screwed directly into a 42.5mm diameter post, the holes have been tapped out and these swage studs have been directly screwed in, the nut then will act as a locking nut against the post




Steel wire rope rigging service

If you would like us to swage your steel wire rope fittings for you please get in touch for a quote or you can use our wire rope builder page to order online
