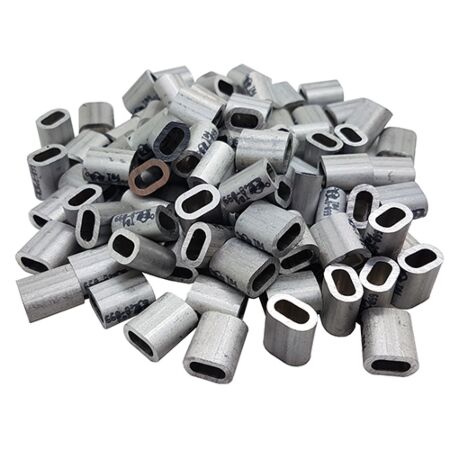

Steel Wire Rope Ferrules

Steel Wire Rope Ferrule Crimps

The copper or stainless steel ferrules are preferable for use with stainless steel wire ropes, as they prevent any reaction between the two materials. Our choice of aluminium steel wire rope ferrules are generally used for galvanised steel wire rope.

All these steel wire rope ferrules are manufactured by industry leaders TALURIT™.

Also known as wire ferrules, swaged sleeves, crimps, steel wire rope sleeves, cable crimps or crimping loops.

6 Items

Set Descending Direction

6 Items

Set Descending Direction




Don't forget..

Choose the correct ferrule to suit the material of the steel wire rope you are using....

Aluminium ferrules - use these with galvanised steel wire ropes

Copper ferrules - use these with stainless steel wire ropes

Stainless ferrules - use these with stainless steel wire ropes


Ferrule Technical Information

All of the steel wire rope ferrules we supply are TALURIT 'T' ferrules, they are the original in mechanical splicing and has laid the grounds for the European standard.


The T-ferrule correspond to the European standard (FSET) for turnback ferrule or ferrule secured steel wire rope eye termination. The ferrule is according to EN 13411-3 standard and are produced from seamfree extrusions which are extruded seamless over mandrel and the aluminium alloy is AW-5051A according to EN 573-3.

Ferrule applications

The T aluminium turnback ferrules are the most commonly used ferrules in the market, they have a vast variety of applications especially in the lifting gear industry. The T ferrule are thoroughly specified and very well defined for many different steel wire rope applications. Four different cases are tested and verified according to the standard, EN 13411-3. The ferrules can be used for fibre core, single layer wire ropes, steel core single layer wire ropes, rotation resistant wire ropes and some spiral strand ropes.

To be noted....

The T aluminium turnback ferrule system is easy to use. It is quick, safe and has proved itself to be totally reliable. It is also more efficient than most other swaging methods on the market and has been tested and verified according to type testing requirements.


Wire Rope Rigging service

If you would like our team of trained wire rope riggers to professionally swage your steel wire rope ferrules for you please use our wire rope builder page to design your wire rope fabrication - we will be happy to create and supply your custom wire rope assembly
