Galvanised Steel Wire Rope Grips DIN 741

Galvanised wire rope grips

DIN 741 specification

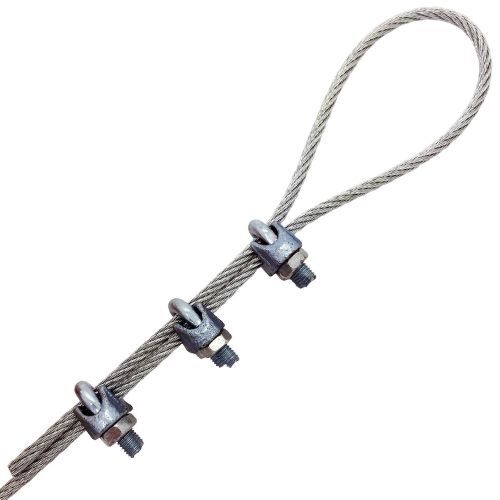

These allow you to create loops in wire without specialist tools

Sized to suit 3mm-25mm diameter wire ropes

Can be bought individually or in packs of 100

















In stock
Grouped product items
Product Pack Quantity A (mm) D (mm) B1 (mm) B2 (mm) H1 (mm) H2 (mm) Suit Wire Diameter (mm) PRICE Qty
3mm 1 12 M4 4 10 20 10 3
£0.11 £0.09
5mm 1 13 M5 6 11 24 10 4 & 5
£0.12 £0.10
6mm 1 15 M5 8 12 28 11 6
£0.16 £0.13
8mm 1 19 M6 9 14 34 15 8
£0.22 £0.18
10mm 1 22 M8 11 18 42 17 10
£0.35 £0.29
12mm 1 30 M10 14 23 55 21 12
£0.53 £0.44
16mm 1 33 M12 17 26 63 28 16
£0.96 £0.80
19mm 1 38 M12 20 29 75 30 19
£1.10 £0.92
22mm 1 44 M14 23 33 85 31 22
£1.39 £1.16
25mm 1 45 M14 27 35 95 37 25
£2.09 £1.74
Grouped product items
Product Pack Quantity A (mm) D (mm) B1 (mm) B2 (mm) H1 (mm) H2 (mm) Suit Wire Diameter (mm) PRICE Qty
3mm 100 12 M4 4 10 20 10 3
£10.67 £8.89
5mm 100 13 M5 6 11 24 10 4 & 5
£11.87 £9.89
6mm 100 15 M5 8 12 28 11 6
£15.35 £12.79
8mm 100 19 M6 9 14 34 15 8
£20.40 £17.00
10mm 100 22 M8 11 18 42 17 10
£34.20 £28.50
12mm 100 30 M10 14 23 55 21 12
£50.39 £41.99
16mm 100 33 M12 17 26 63 28 16
£89.99 £74.99
Show Price without VAT

A simple guide on how to use and fit your steel wire rope grips

  • DIN 741 Steel Wire Rope Grips should be spaced six wire rope diameters apart to give adequate holding power (eg. 5mm wire rope = 30mm distance between grips)
  • We recommend a minimum of 3 grips per end for diameters upto 6mm and 4 grips for diameter 8mm - 19mm
  • They should be tightened before the rope is placed under tension
  • After the load is placed on the wire rope, tighten the clamps again to take care of any lessening in rope diameter caused by tension of the load
  • Regularly check the nuts ensuring they are still fastened tightly
  • The Wire Rope Grips are sized like for like, eg. If you have 5mm wire rope then buy 5mm grips, each grip allows that diameter of wire to pass through twice to form a loop
  • It is generally accepted that you should achieve 50% of the wire rope breaking load as a guide to holding power
  • We recommend using these wire rope grips with a flexible strand of steel wire ropes - do not use these grips with the stiff 1x19 wire rope strands





Please take note of the above image, the dead end of the wire (cut end) should always be at the top, the live end should always be at the bottom on the saddle

Below are recommendations for turnback and torque settings for DIN 741 specification steel wire rope grips



It is strongly recommended and in some applications required that the wire rope grips are regularly inspected. This is required because the products in use may be affected by wear, misuse, overloading etc. with a consequence of deformation and alteration of the material structure. Inspection should take place at least every six months and even more frequently when the products are used in severe operating conditions

The above information is for guidance only, wire rope grips should not be used for lifting or safety critical applications
