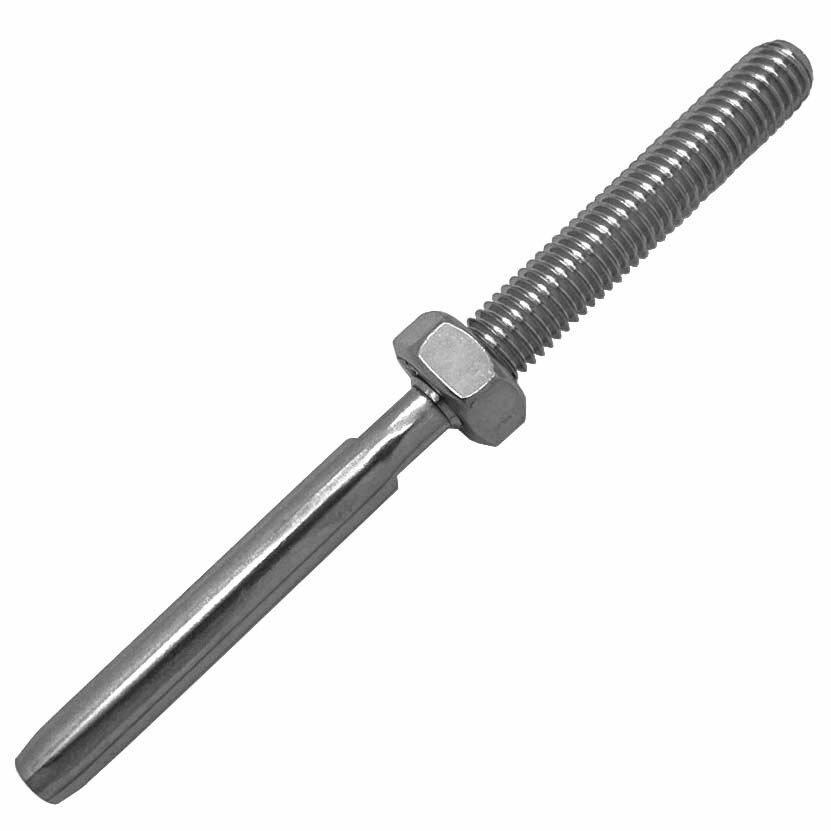

Stainless Steel Wire Rope Swage Stud Terminals - Left Handed

We offer a huge selection of stainless steel swage studs with a left handed thread.

They are made with A4-AISI 316 stainless steel.

They need to be crimped or swaged onto wire.

These swage studs are available for use with wire rope ranging from 2mm-6mm diameters.

Each comes with 1 hex nut.

In stock
Grouped product items
Product A (mm) L (mm) D (mm) G (mm) L2 (mm) L1 (mm) Suit Wire Diameter (mm) PRICE Qty
2mm Left Handed Swage Stud (M5 Stud) 2 86 5.5 5 30 40 2
£1.60 £1.33
2.5mm Left Handed Swage Stud (M5 Stud) 2.5 86 5.5 5 30 40 2.5
£1.61 £1.34
3mm Left Handed Swage Stud (M6 Stud) 3.3 80 6.35 6 32 40 3
£1.70 £1.42
4mm Left Handed Swage Stud (M8 Stud) 4.2 102 7.5 8 40 52 4
£1.99 £1.66
5mm Left Handed Swage Stud (M10 Stud) 5.2 130 9 10 57 63 5
£2.69 £2.24
6mm Left Handed Swage Stud (M12 Stud) 6.75 142 12.5 12 63 68 6
£4.79 £3.99
8mm Left Handed Swage Stud (M16 Stud) 9 200 17 16 75 100 8
£14.39 £11.99
10mm Left Handed Swage Stud (M16 Stud) 11 215 18 16 90 100 10
£19.19 £15.99
Show Price without VAT

Left handed stud swage terminals, often used on the opposite end to a right handed version, with both hands being opposite handed threads it allows for balustrade wires to be screwed inwards or outwards at the same time




Steel wire rope swaging service

We have an experienced team of steel wire rope riggers who can professionally press your swage terminals for you - get in touch for a quote
