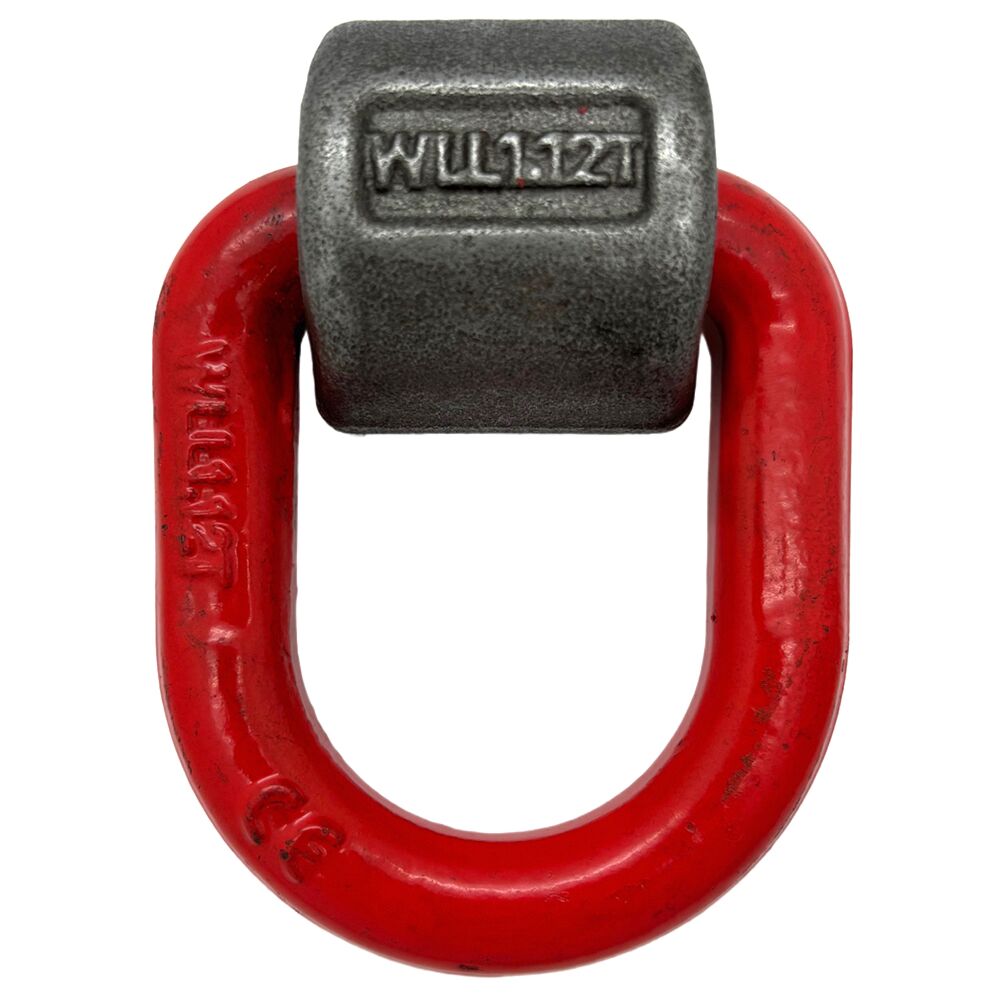

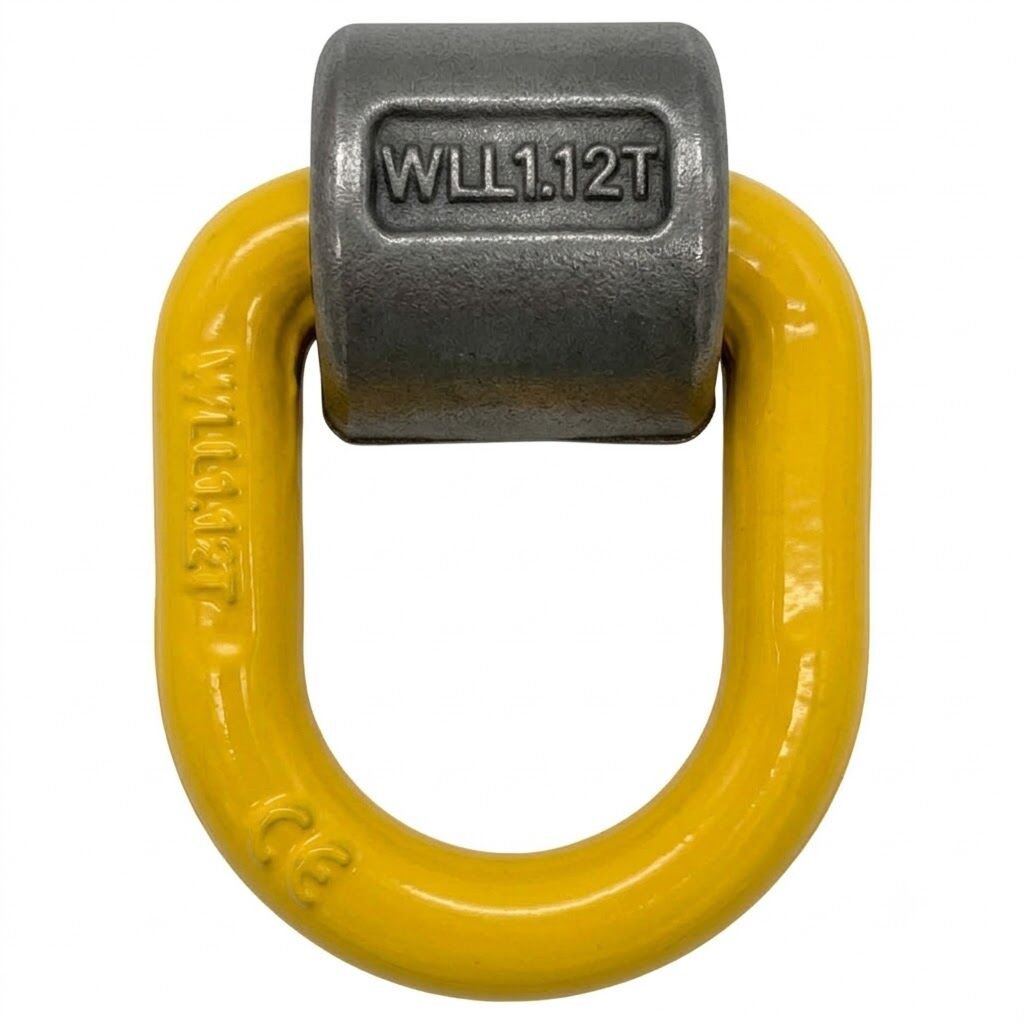

Grade 80 Weld On Lashing D Ring Lifting Point
Grade 80 weld on lifting point - D Ring and weld on staple
These lashing weld on d rings conform to EN 12640 and have a 4:1 safety factor, they are WLL and CE marked
To achieve full load these rings must be welded in accordance to DIN5817 resp 15429 by a qualified welder to BS EN 287-1
1.12ton - 5.30 tons WLL available
In stock
Download Product Data Sheet
Grade 80 Weld on D Ring Technical Specifications:
§ Super alloy Grade 8 steel
§ Base is made from 16 Mn carbon steel
§ Welding must be carried out by a qualified welder according to BS EN 287-1
§ Temperature range -40°C up to +200°C
§ Marked with W.L.L, material grade, CE and ID mark
§ 100% magnaflux crack detection
§ Safety Factor 4:1 (breaking load is 4x the W.L.L)
§ UK stock
§ Comes supplied with relevant certificates
