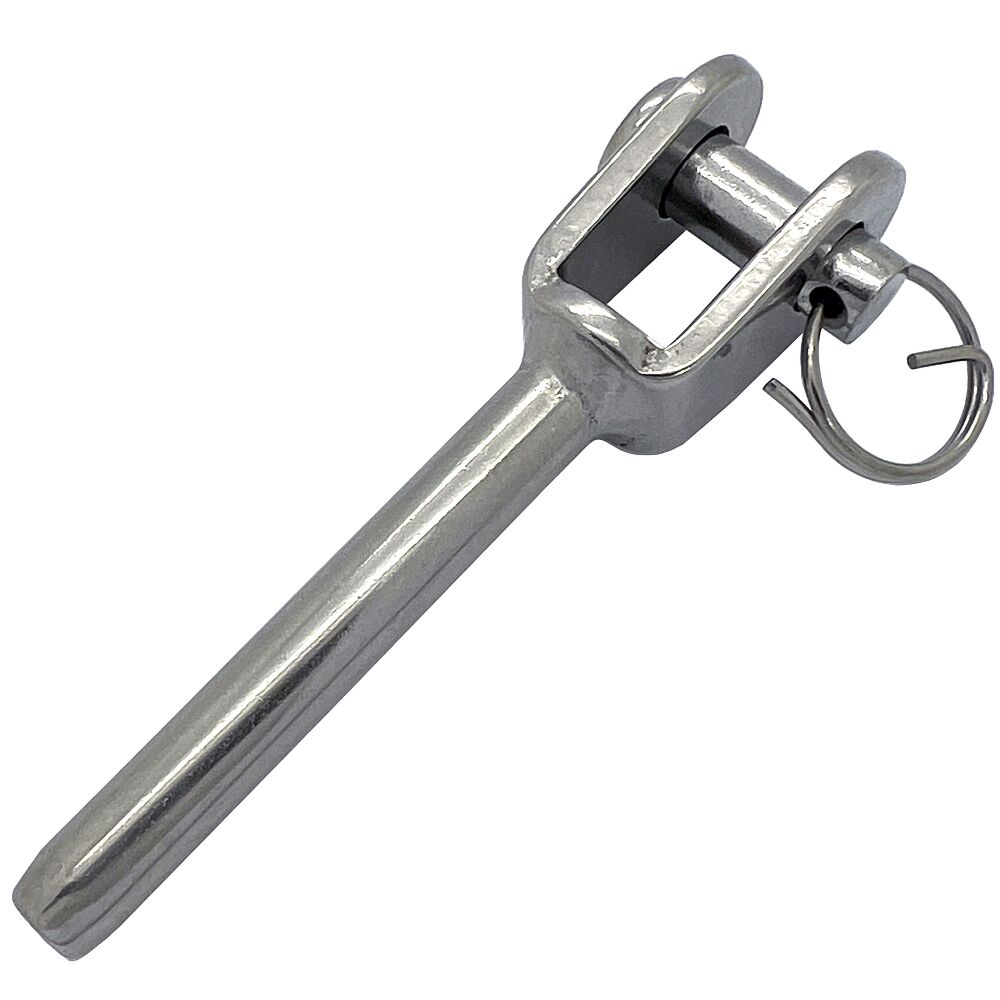

Stainless Steel Wire Rope Swage Jaw Fork Terminals

Stainless steel swaje jaw terminals

Made with A4 AISI-316 stainless steel

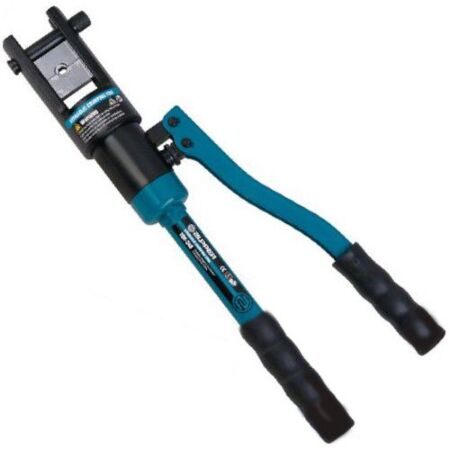

To fit onto wire rope they need to be hydraulically swaged on

Includes a removable clevis pin on the terminal which is held captive by a split ring

Sizes available range from 2mm-12mm diameters

In stock

Grouped product items
Product	A (mm)	D1 (mm)	D2 (mm)	D3 (mm)	L2 (mm)	L1 (mm)	Suit Wire Diameter (mm)	PRICE
2mm Stainless Steel Swage Jaw Terminal	5.5	2	5.5	4	28	55	2	£2.26 £1.88
2.5mm Stainless Steel Swage Jaw Terminal	5.5	2.5	5.5	4	28	55	2.5	£2.36 £1.97
3mm Stainless Steel Swage Jaw Terminal	7.5	3.3	6.35	5	32	65	3	£2.66 £2.22
4mm Stainless Steel Swage Jaw Terminal	10	4.2	7.5	8	40	77	4	£2.99 £2.49
5mm Stainless Steel Swage Jaw Terminal	12	5.2	9	8	57	88	5	£4.25 £3.54
6mm Stainless Steel Swage Jaw Terminal	14	6.25	12.5	12	63	106	6	£6.10 £5.08
8mm Stainless Steel Swage Jaw Terminal	15	8.4	16.1	14	85	145	8	£16.39 £13.66
10mm Stainless Steel Swage Jaw Terminal	20	11	18	19	90	150	10	£19.19 £15.99
12mm Stainless Steel Swage Jaw Terminal	23	14	18	19	100	195	12	£22.20 £18.50

Show Price without VAT

Steel wire rope rigging service

Our team of wire rope riggers can swage your stainless steel jaw terminals onto your steel wire rope for you, you can use our wire rope builder HERE or email us for a custom quote.
